PRODUCT FEATURES
Durable and robust aluminum alloy casing
Integrated precise cylinder construction results in higher ultimate vacuum

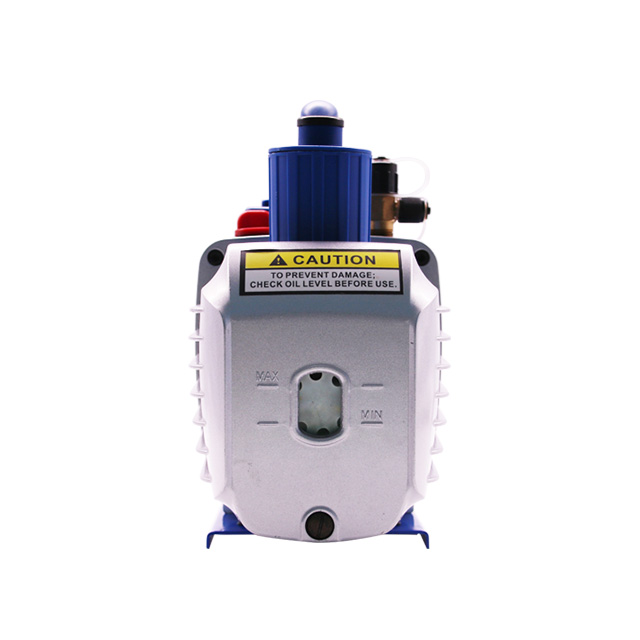

Easy monitoring oversized sight glass
Anti-suckback design to prevent pump oil from flowing back into the vacuum chamber
| UNIVERSAL MODEL | CUSTOMIZED | ||
| Pattern | Quantity requirement | Pattern | Quantity requirement |
| Paper box | 200 pcs | Custom color box | 500 pcs |
| Neutral famous brand | Customized famous brand | ||
| Single Stage Vacuum Pump / Technical Parameter | ||||||||
| Type | Flow Rate 50Hz | Flow Rate 60Hz | Ultimate Vacuum | Power （HP） | Inlet Port | Capacity （ml） | Dimensions （mm） | Weight （Kg） |
| VP115 （VP-1） | 1.5 CFM 42 L/min | 1.8 CFM 50 L/min | 2 Pa 150 Micron | 1/4 | 1/4" Flare | 320 | 270x119x216 | 5.3 |
| VP125 （VP-1.5） | 2.5 CFM 70 L/min | 3 CFM 84 L/min | 2 Pa 150 Micron | 1/4 | 1/4" Flare | 300 | 270x119x216 | 5.5 |
| VP135 （VP-2） | 3.5 CFM 100 L/min | 4 CFM 114 L/min | 2 Pa 150 Micron | 1/3 | 1/4" Flare | 350 | 278x119x216 | 6.5 |
| VP145 （VP-2.5） | 4.5 CFM 128 L/min | 5 CFM 142 L/min | 2 Pa 150 Micron | 1/3 | 1/4" Flare | 350 | 278x119x216 | 6.8 |
| VP160 （VP-3） | 6 CFM 170 L/min | 7 CFM 198 L/min | 2 Pa 150 Micron | 1/2 | 1/4"&3/8" Flare | 450 | 320x134x232 | 10 |
| VP180 （VP-4） | 8 CFM 226 L/min | 9 CFM 254 L/min | 2 Pa 150 Micron | 3/4 | 1/4"&3/8" Flare | 700 | 370x140x250 | 14 |
| VP1100 （VP-5） | 10 CFM 283 L/min | 12 CFM 340 L/min | 2 Pa 150 Micron | 1 | 1/4"&3/8" Flare | 800 | 390x140x250 | 14.5 |
| Dual Stage Vacuum Pump / Technical Parameter | ||||||||
| Type | Flow Rate 50Hz | Flow Rate 60Hz | Ultimate Vacuum | Power （HP） | Inlet Port | Capacity （ml） | Dimensions （mm） | Weight （Kg） |
| VP215 (2VP-0.5) | 1.5 CFM 42 L/min | 1.8 CFM 50 L/min | 2x10-1 Pa 15 Micron | 1/4 | 1/4" Flare | 180 | 270x119x216 | 6 |
| VP225 (2VP-1) | 2.5 CFM 70 L/min | 3 CFM 84 L/min | 2x10-1 Pa 15 Micron | 1/3 | 1/4" Flare | 280 | 270x119x216 | 7 |
| VP235 (2VP-1.5) | 3.5 CFM 100 L/min | 4 CFM 114 L/min | 2x10-1 Pa 15 Micron | 1/3 | 1/4"&3/8" Flare | 360 | 320x134x232 | 11 |
| VP245 (2VP-2) | 4.5 CFM 128 L/min | 5 CFM 142 L/min | 2x10-1 Pa 15 Micron | 1/2 | 1/4"&3/8" Flare | 350 | 320x134x232 | 11.8 |
| VP260 (2VP-3) | 6 CFM 170 L/min | 7 CFM 198 L/min | 2x10-1 Pa 15 Micron | 3/4 | 1/4"&3/8" Flare | 700 | 370x140x250 | 15 |
| VP280 (2VP-4) | 8 CFM 226 L/min | 9 CFM 254 L/min | 2x10-1 Pa 15 Micron | 1 | 1/4"&3/8" Flare | 600 | 370x140x250 | 15.5 |
| VP2100 (2VP-5) | 10 CFM 283 L/min | 12 CFM 340 L/min | 2x10-1 Pa 15 Micron | 1 | 1/4"&3/8" Flare | 700 | 390x140x250 | 16 |
