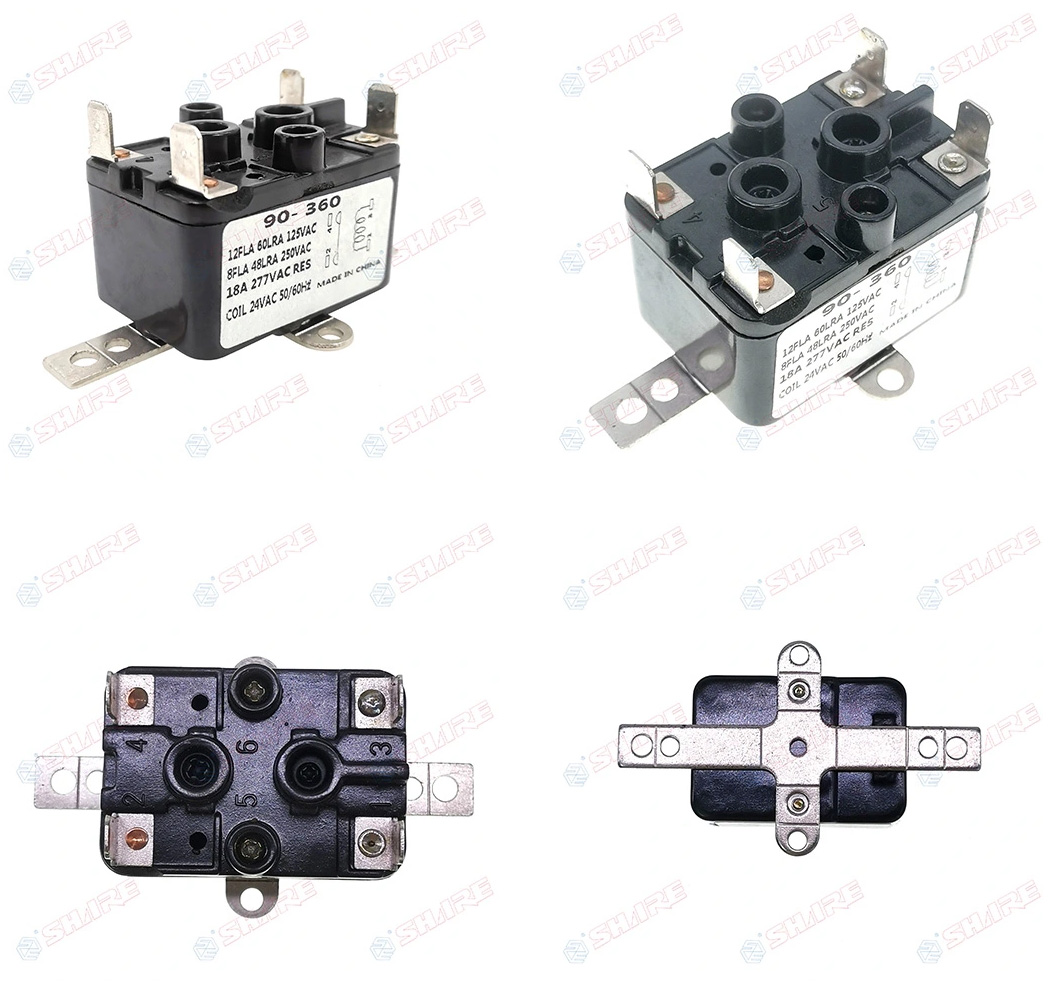

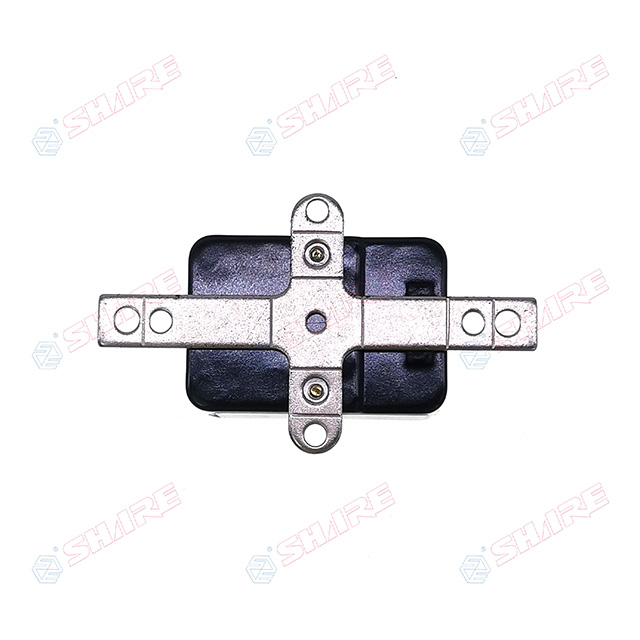

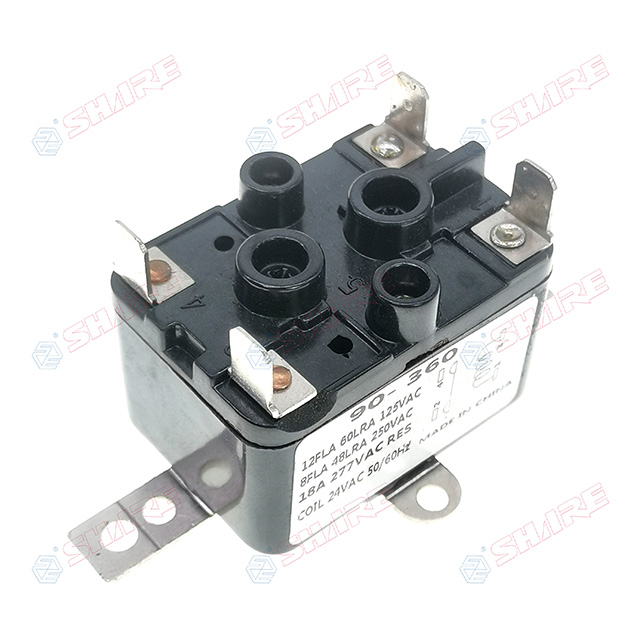

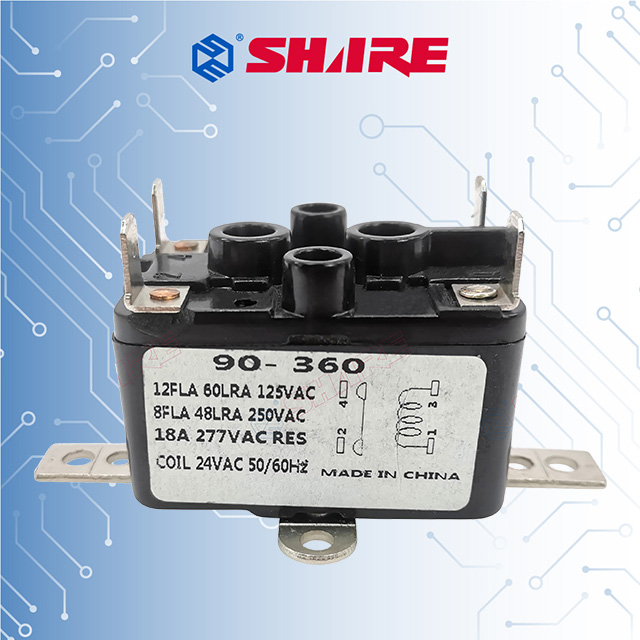

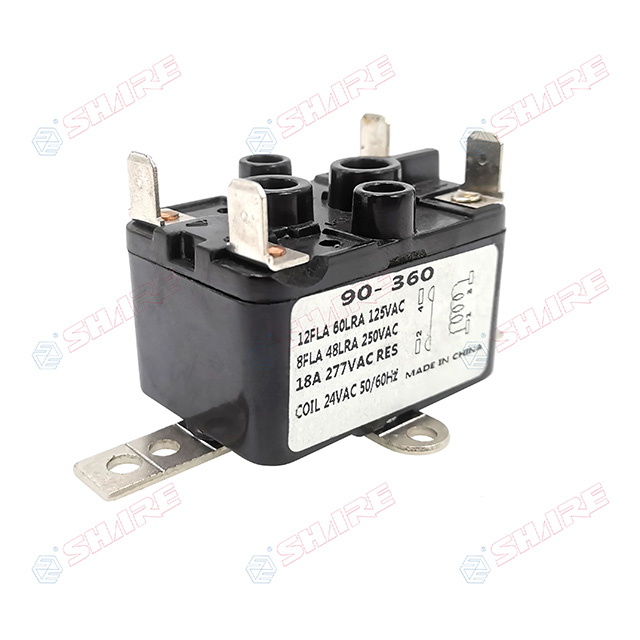

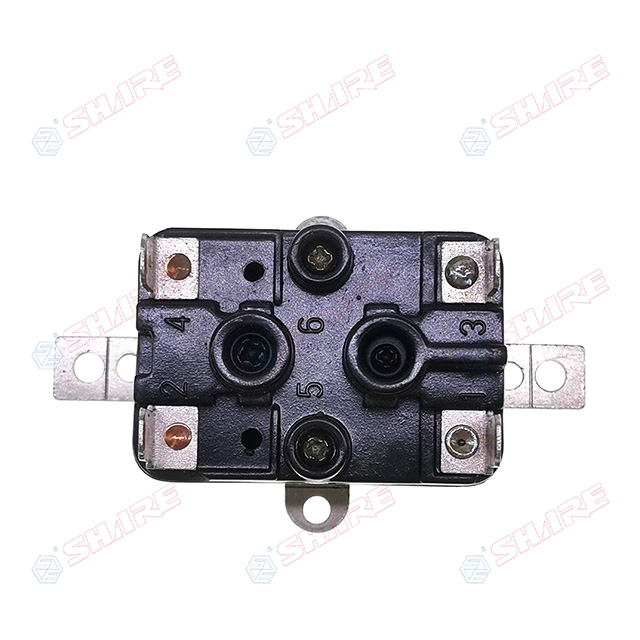

Fan Relay

Fan realys mainly used in thecontrol circuit with AC50/60Hz voltage to380V,dc voltage to220V orthe power line which the rated Current up to 14A. It's usedfor switching the circuit to control the air conditioning fan the electeic heating. It's suitable for air conditioning,home appliance,industrial machinery and other electric equipments.
The product has the advantages of small size, light weight,low power consumption, high contact load,strong impact resistance,high reliability,etc...

Quantity:
Availability:





Inquire Add to Basket

PRODUCT FEATURES

PRODUCT FEATURES

Class B Insulation Material
25A Switching capabilities
2000V Insulation dielectric strength
SPST-NO, SPST-NC and SPDT configuration

PACKAGING ANALYSIS		200/PCS
UNIVERSAL MODEL		CUSTOMIZED
Pattern	Quantity requirement	Pattern	Quantity requirement
Paper box	200 pcs	Custom color box	1000 pcs
Neutral famous brand		Customized famous brand

Part NO.	Type	FLA125V	LRA125V	FLA250V	LRA250	Coil VAC
90360	SPDT	12	60	8	48	24V
90364	SPDT	12	60	8	48	24V
90370	SPDT	12	60	8	48	24V
90372	SPDT	14	84	8	48	120V
90374	SPDT	14	84	8	48	240V
90380	NO/NC	12	60	8	48	24V
90382	NO/NC	12	60	8	48	120V
90384	NO/NC	12	60	8	48	240V
