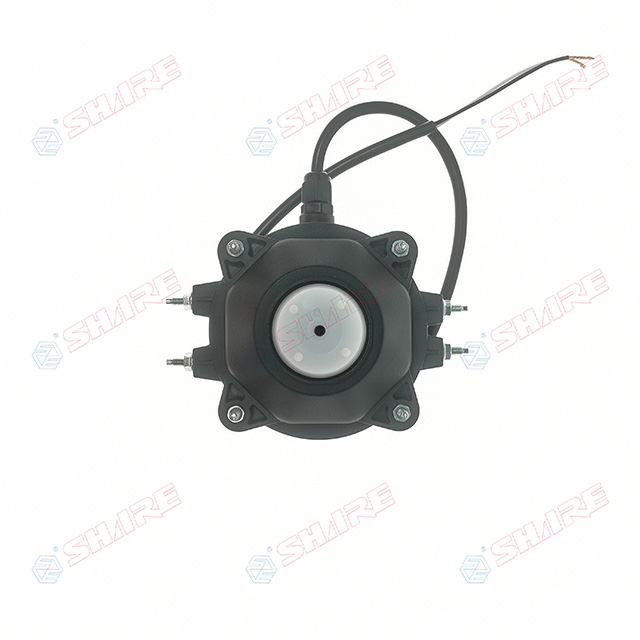

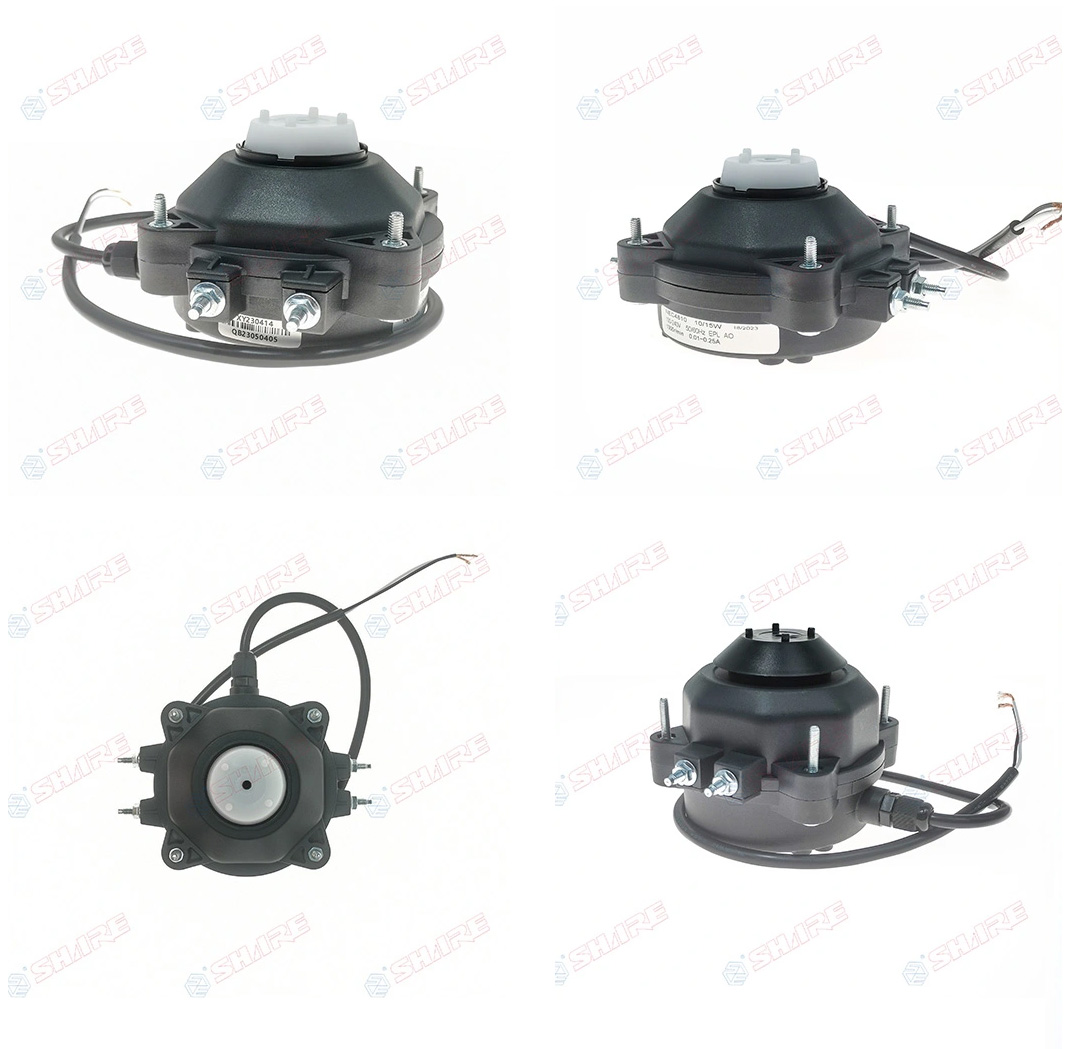

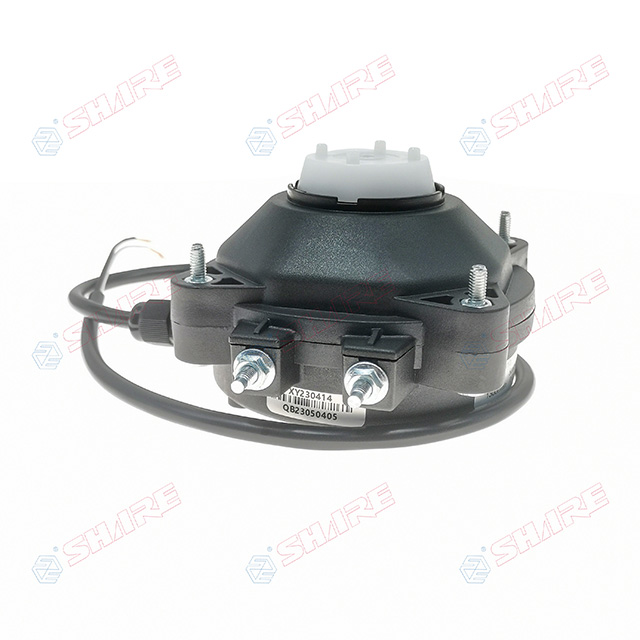

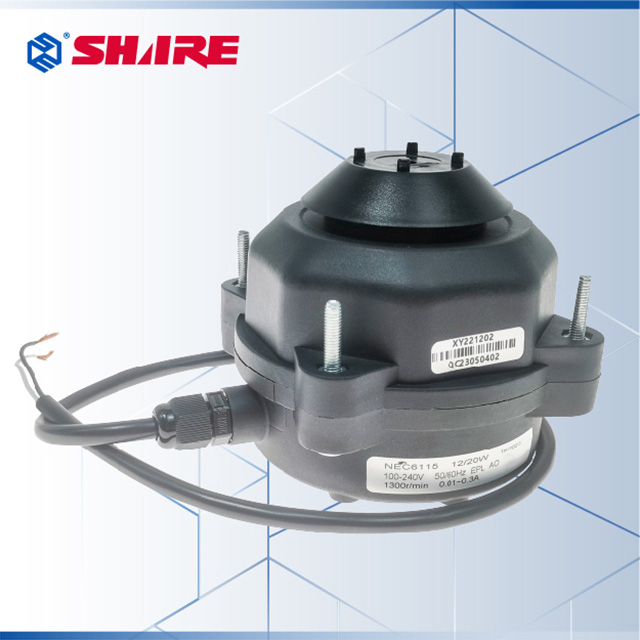

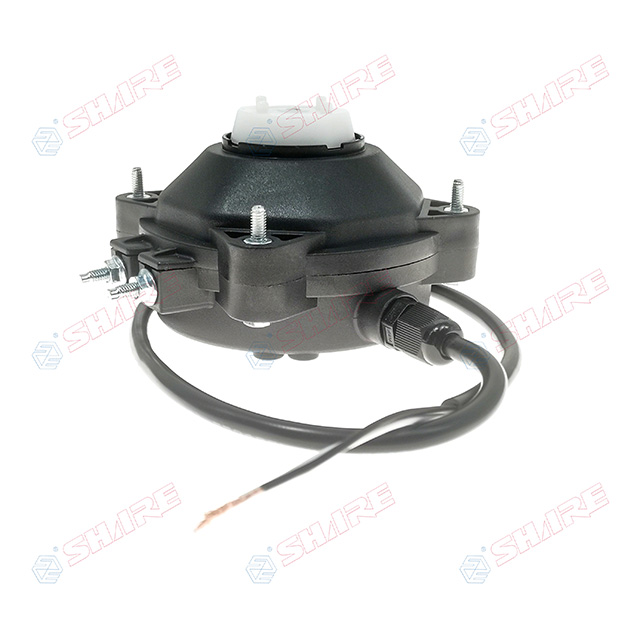

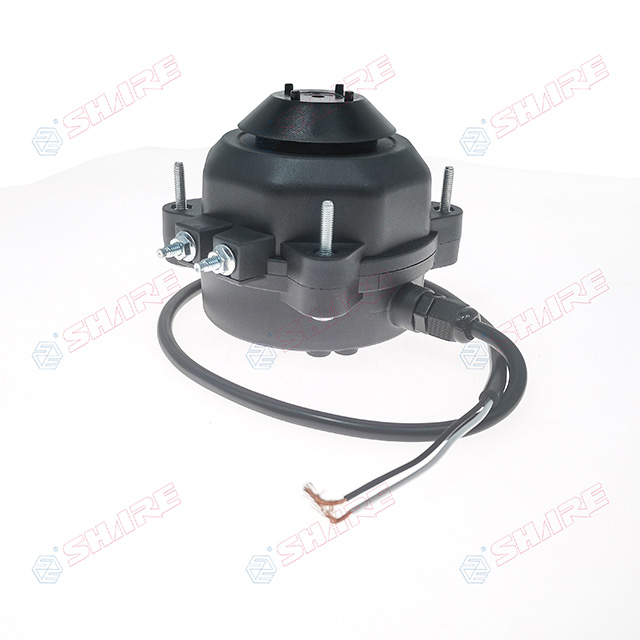

EC FAN Motor

All EC motors are electronically commutated (EC) motors wih full enclosed or external electronic control with output ratings between 5--38 watts. The motors are energy saving replacements of shaded pole and PSC induction motors used in evaporators and condensors in refrigeration applications.
EC motors rate: up to 70%
The efficiency of conventional shaded pole motor is 20%

Quantity:
Availability:





Inquire Add to Basket

PRODUCT FEATURES

PRODUCT FEATURES

Power:40VA 50VA75VA 100VA
Power Stand : <8W
Dielectric strength:3750V
Primary:120-240V 50/60Hz
OSecondary:24V
Insulation: Class B
Flammability: V-o

PACKAGING ANALYSIS		20/pcs
UNIVERSAL MODEL		CUSTOMIZED
Pattern	Quantity requirement	Pattern	Quantity requirement
Paper box	300 pcs	Custom color box	1000 pcs
Neutral famous brand		Customized famous brand

Material:		Aluminum
Type of protection:		IP66
Bearing:		Ball bearing
Universal Evaporator Mount		Standard 3-Hole
Speed:		constant speed 1550RPM CW or CCW
Efficiency:		70% peak

MODEL	LOAD	RPM	W	%

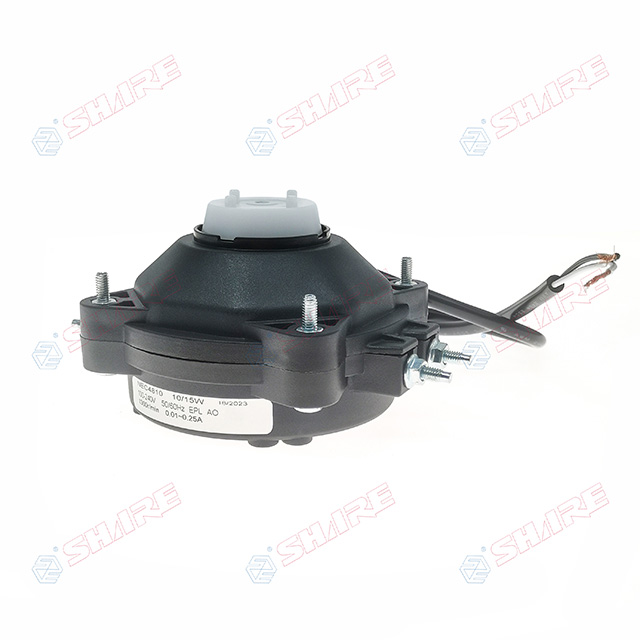

EC4810	230 28°	300-1800	15	70
EC4810 PRO	230 34°	300-1800	18	73
EC7112H	250 34°	300-2300	25	70
EC7120H	250 34°	300-2300	30	71
EC7124H	300 34°	300-2300	35	75
