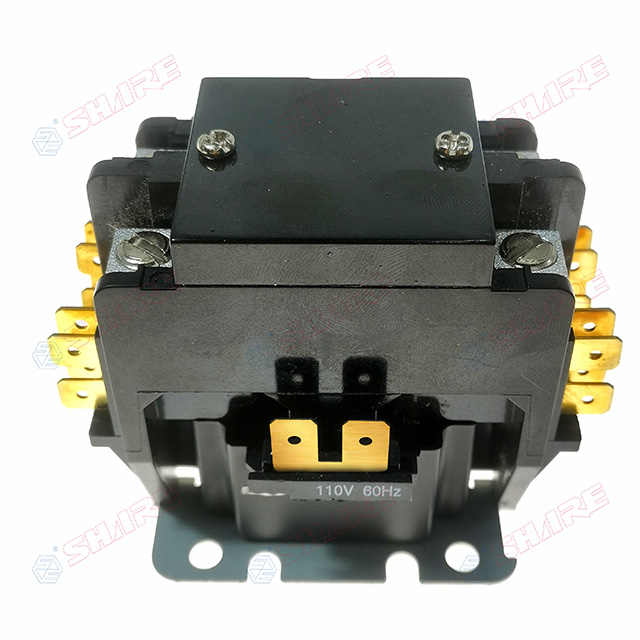

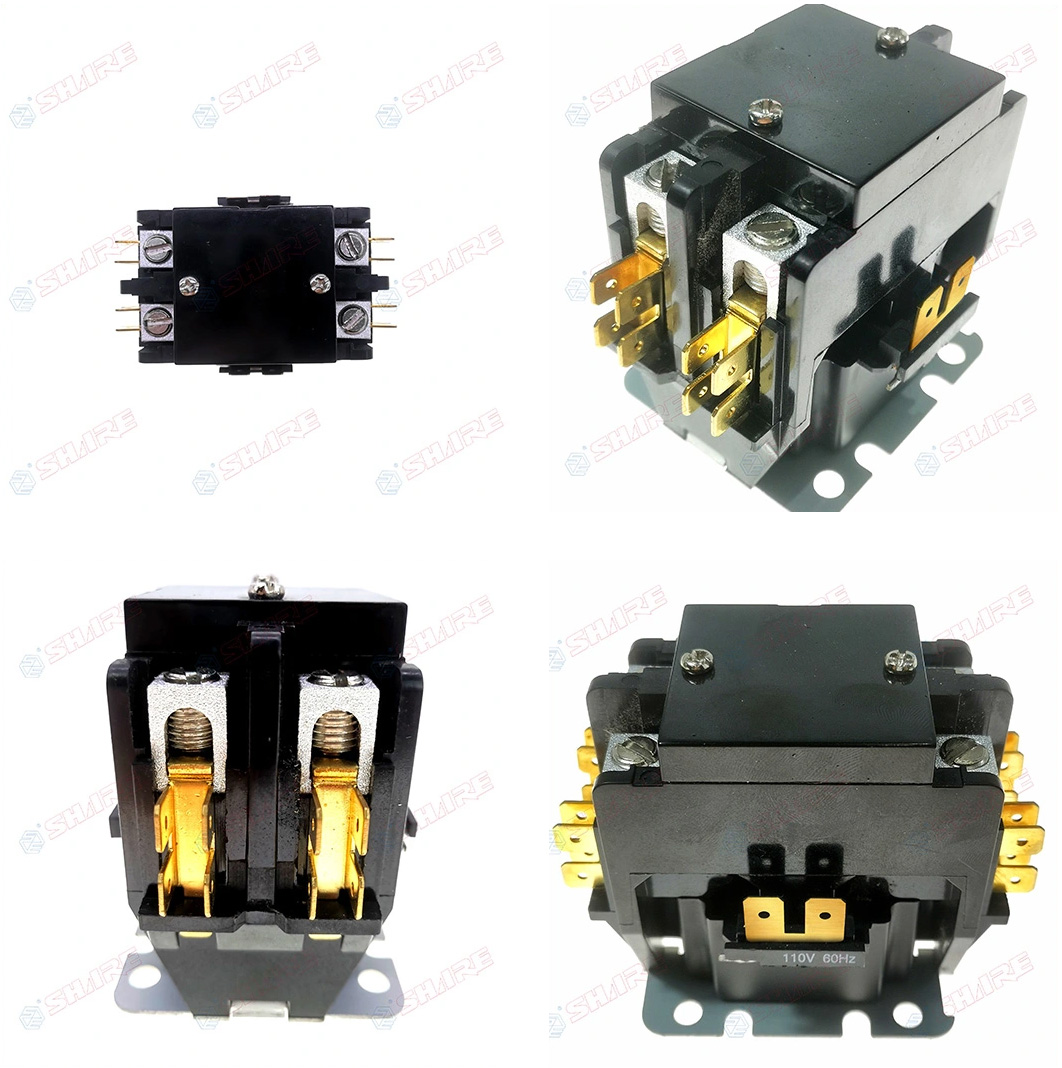

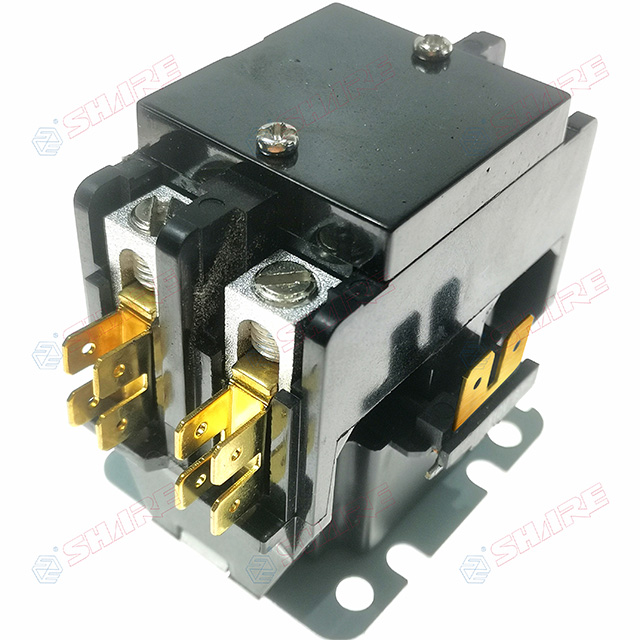

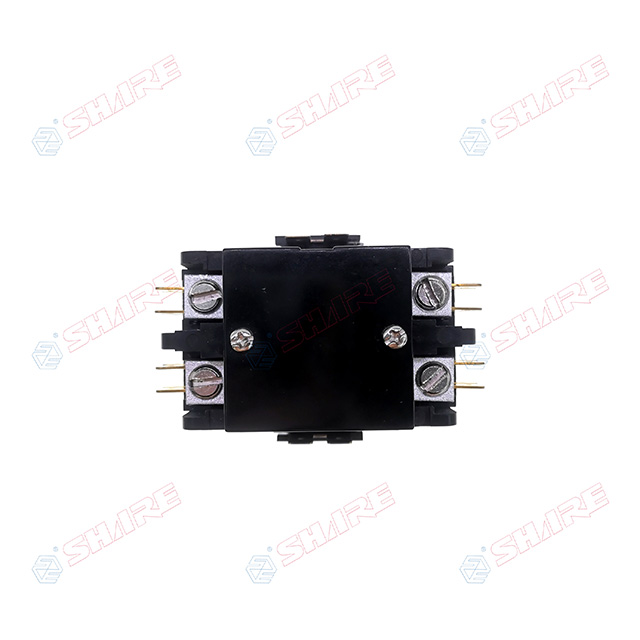

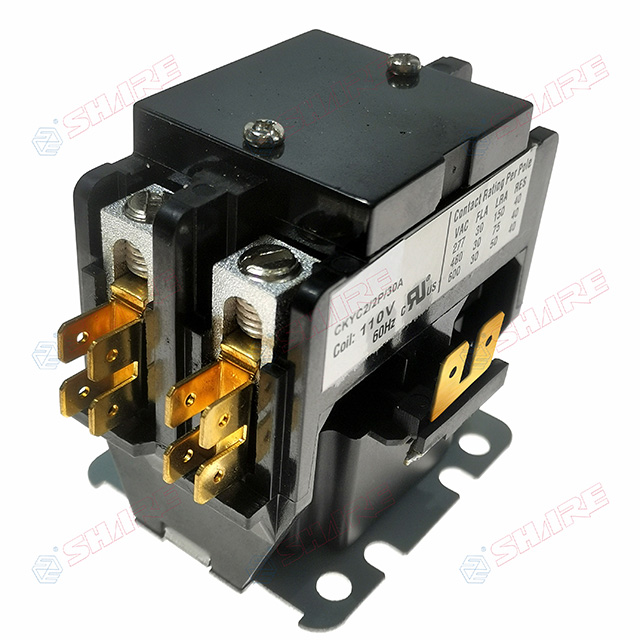

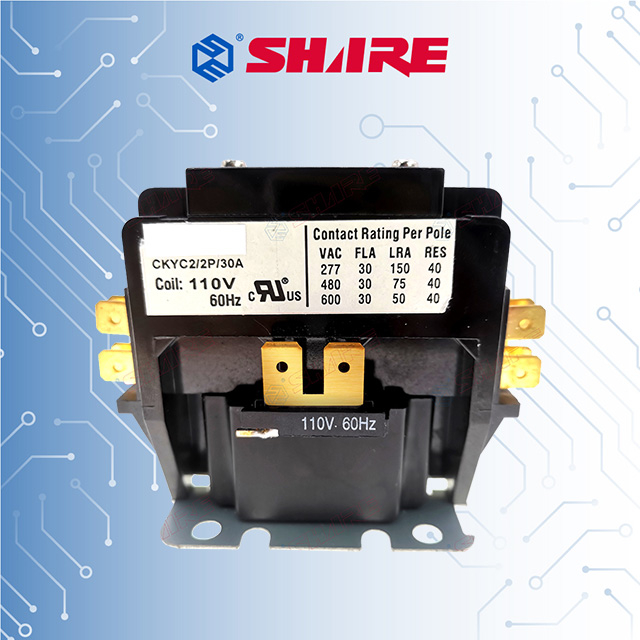

AC Contactors

Special contactor for air conditioner is used in single-phase (or three-phase) load circuit with AC 50/60Hz, rated working voltage of 24V--240V and rated working current of 25A--40A.
At present, it is widely used in HVAC, air conditioning and refrigeration, home and industrial automation.

Quantity:
Availability:





Inquire Add to Basket

PRODUCT FEATURES

PRODUCT FEATURES

Characteristics
DIELECTRIC STRENGTH Between Contacts &Coils: 2,200 VAC Between Poles: 2,200 VAC(includes shunt) Between Open Contacts: 2,200 VAC (no shunt))
ARC COVER Optional on 20-30 FLA Standard on 40 FLA
INSULATION 130℃ Class B
TEMPERATURE RANGE -40℃ to +65℃ -40℉ to +150℉
UNIRT WEIGHT 1 Pole .5Ib 2 Pole .6Ib

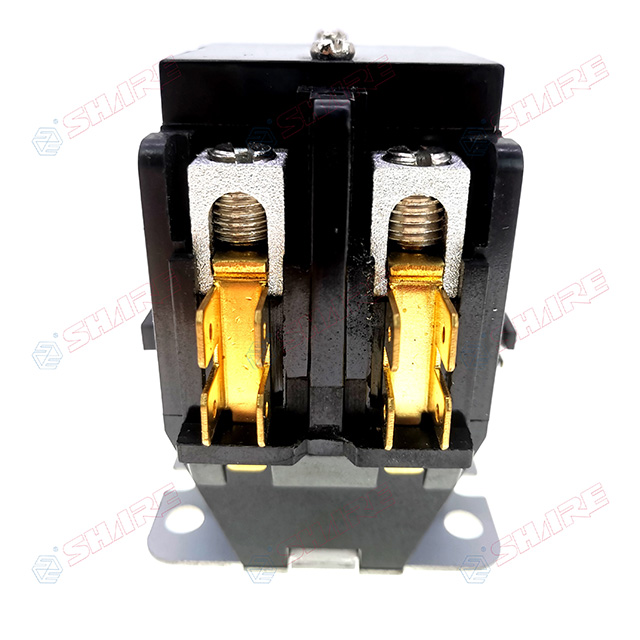

POWER POLE TERMINATIONS #10-32 screw or box lug
WIRE SIZE #10-32 screw 16-8* Box lug 14-4
TIGHTENING TORQUE #10-32 screw 22 In.Ibs Box lug 40 In.Ibs
QUICK CONNECTS Coil terminals Dual: .250" qc Power terminals 1Pole: Quad .250" QC 2Pole: DUAL or Quad .250" QC

UNIVERSAL MODEL		CUSTOMIZED
Pattern	Quantity requirement	Pattern	Quantity requirement
Paper box	200 pcs	Custom color box	1000 pcs
Neutral famous brand		Customized famous brand

Model	2P-30A-24V	2P-30A-120V	2P-30A-240V	2P-40A-24V	2P-40A-120V	2P-40A-240V
FLA	30	30	30	40	40	40
Poles	2	2	2	2	2	2
Resistive Amps	40	40	40	50	50	50
Coil Voltage	24	120	240	24	120	240
Hertz	50/60	50/60	50/60	50/60	50/60	50/60
Locked Rotor Amps 240/480/600	180/150/120	180/150/120	180/150/120	240/200/160	240/200/160	240/200/160
